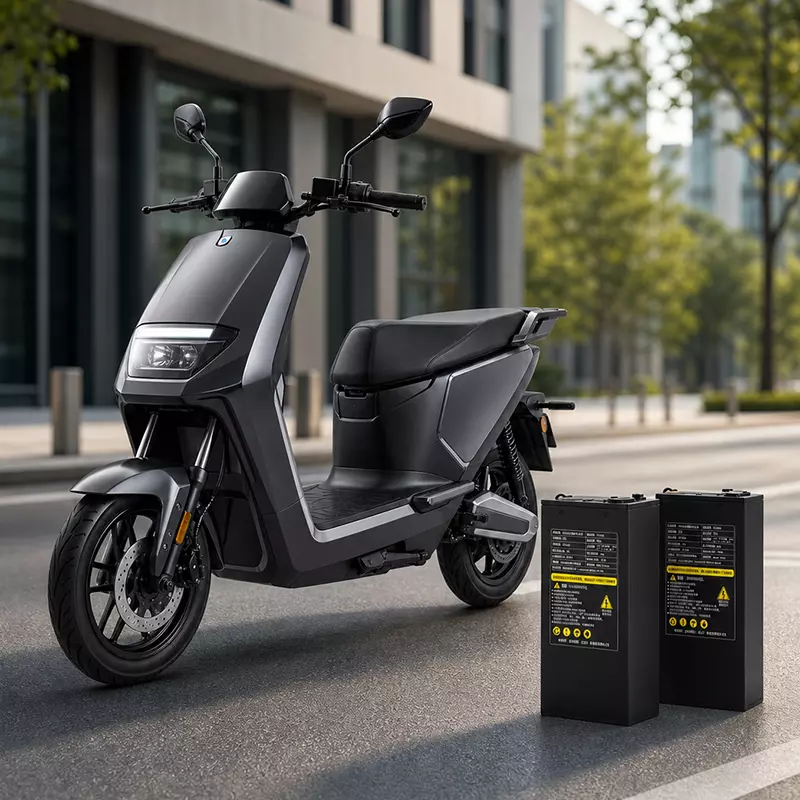

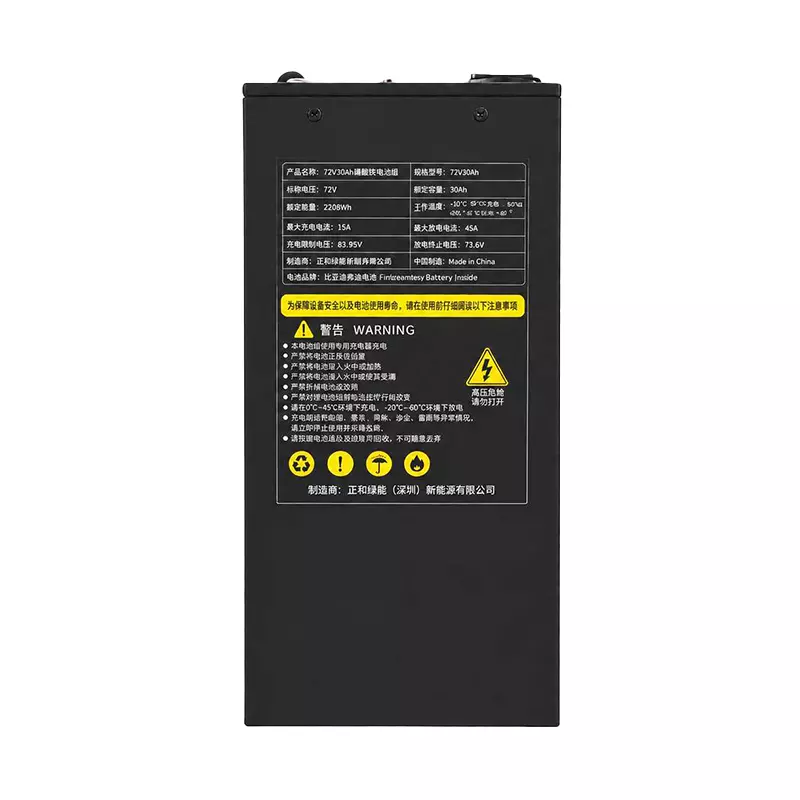

Two-Wheeler Lithium Battery Module Product Manual Specification Sheet
Compiled based on Two-Wheeler Lithium Battery Module (60V25A) Product Specification V2.0 and Two-Wheeler Lithium Battery Module (72V25A) Product Specification V2.0 For product manual display; all field names are unified and key differentiated parameters are retained.
| Category |
Parameter Item |
60V25A |
72V25A |
| ## Basic Parameters |
Basic Parameters |
|
|
| Basic Parameters |
Product Model |
60V25A |
72V25A |
| Basic Parameters |
Cell Model |
46120 |
46120 |
| Basic Parameters |
Cell Configuration |
1P19S |
1P23S |
| Basic Parameters |
Nominal Cell Voltage (V) |
3.2 |
3.2 |
| ## Electrical Performance |
Electrical Performance |
|
|
| Electrical Performance |
Nominal Energy (Wh) |
1444 |
1748 |
| Electrical Performance |
Nominal Voltage (V) |
60.8 |
73.6 |
| Electrical Performance |
Operating Voltage (V) |
45.6~69.35 |
55.2~83.95 |
| Electrical Performance |
Discharge Voltage Range (V) |
45.6~60.8 |
55.2~73.6 |
| Electrical Performance |
Charge Voltage Range (V) |
68.4~69.35 |
82.8~83.95 |
| Electrical Performance |
Max Continuous Charging Current (A) |
15 |
15 |
| Electrical Performance |
Max Continuous Discharging Current (A) |
40 |
45 |
| Electrical Performance |
Charging Time |
2H (At 15A charging current) |
2H (At 15A charging current) |
| Electrical Performance |
Cycle Life (25℃) |
2000 cycles (80% capacity retention rate) |
2000 cycles (80% capacity retention rate) |
| ## Function Configuration |
Function Configuration |
|
|
| Function Configuration |
Communication Mode |
Bluetooth + One-Wire Communication |
Bluetooth + One-Wire Communication |
| Function Configuration |
BMS Functions |
Charge protection, discharge protection, power loss protection, secondary charge protection, short-circuit protection, temperature protection, cell balancing function |
Charge protection, discharge protection, power loss protection, secondary charge protection, short-circuit protection, temperature protection, cell balancing function |
| ## Environmental Conditions |
Environmental Conditions |
|
|
| Environmental Conditions |
Operating Temperature |
Charging: -10~55℃; Discharging: -10~60℃ |
Charging: -10~55℃; Discharging: -10~60℃ |
| ## Structural Information |
Structural Information |
|
|
| Structural Information |
Dimension (LWH) mm |
180180345 |
218165350 |
| Structural Information |
Weight |
18kg±2 |
20kg±2 |
| Structural Information |
Housing Material |
Sheet Metal |
Sheet Metal |
| Structural Information |
Color |
Black |
Black |
| Structural Information |
Ingress Protection Rating |
IP65 |
IP65 |
